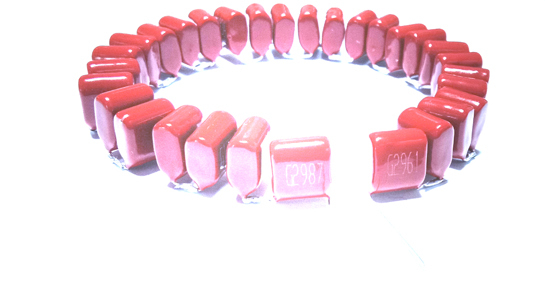

互感器用电容
互感器用电容
互感器用电容
- 产品详情
- 产品参数
■ 外形结构及尺寸Shape Structure and size
低压电容外形尺寸 (mm) Low Voltage Capacitor Profile Size | W max | H max | T max | d±0.1mm | 备注 Remarks |
18.0 | 14.0 | 11.0 | 0.70 | / | |
高压电容外形尺寸 (mm) High Voltage Capacitor Profile Size | W max | H max | T max | d±0.1mm | 模块根据焊接 方式排列 |
12.0 | 12.0 | 7.0 | 0.70 |
■特点 Features
轻量化： 互感电容仅占陶瓷电容重量的30%。
Lightweight: Mutual inductance capacitance only accounts for 30% of the weight of ceramic capacitors.
更高安全性： 无短路风险
Higher Safety: No Short Circuit Risk
更优的抗干扰性：产品无源容性负载，无电磁干扰，频率响应更宽。
Better anti-interference: product passive capacitive load, no electromagnetic interference, wider frequency response.
组合方便产品布线方便、随意组合安装。
The combination is convenient for product wiring and installation at will.
■技术要求 Specifications
电容器类别Class | X2类 | |
气候类别 / 阻燃等级 Climatic Category/ Passive Flammability Category | 40/085/56/B | |
工作温度范围Operating Temperature Range | -40℃—+85℃ | |
额定电压 Rated Voltage | 250Vac/275Vac/300Vac, 50/60Hz | |
电容量范围和偏差 Capacitance Range and Tolerance | 0.01μF～1.0μF,±20%（M） | |
电阻范围和偏差 Resistance Range And Tolerance | 10.0Ω~1000.0Ω,±30％ CNRN＜50μs,100kHz CNRN≥50μs,1kHz | |
耐电压 Voltage Proof | 引线之间 Between Terminals: | 2000Vdc(2s) |
极壳之间Between Terminals To Case: | 2100Vac(1min) | |
绝缘电阻Insulation Resistance | R≥15000MΩ，CN≤0.33μFRCN≥5000s，CN＞0.33μF（20℃，100V,1min） | |
