■ 结构外形图 Outline Drawing

备注：尺寸可根据产品设计调整, Unit：mm      未注公差±1mm。

Remarks: the size can be adjusted according to the product design. Unit：mm

■ 应用Application

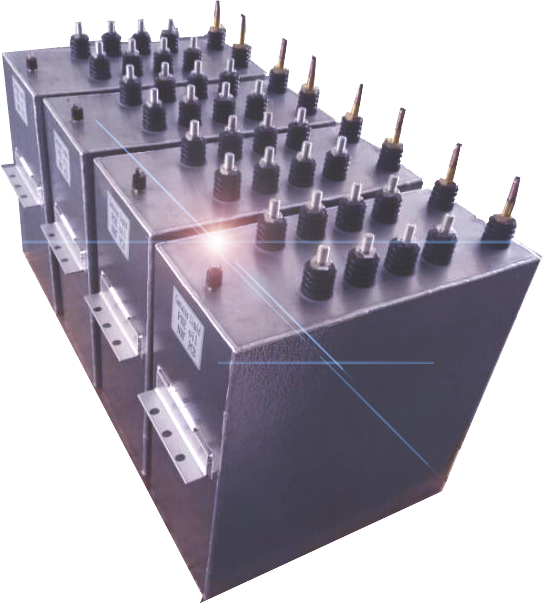

广泛应用于DC-link电路做储能滤波

    Widely used in DC-Link circuit for filtering energy storage

可替代电解电容器，性能更稳定且寿命更长

    Can replace electrolytic capacitors, better performance and longer life

在风电变流器、光伏逆变器、电动汽车和混合动力车，逆变焊机、高频电源及感应加热设备用于直流支撑及滤波。

    Wind power, photovoltaic power inverter; electric vehicles and hybrid vehicles; welding equipment ,power   supplies and induction      heating equipment, for the DC link filter
